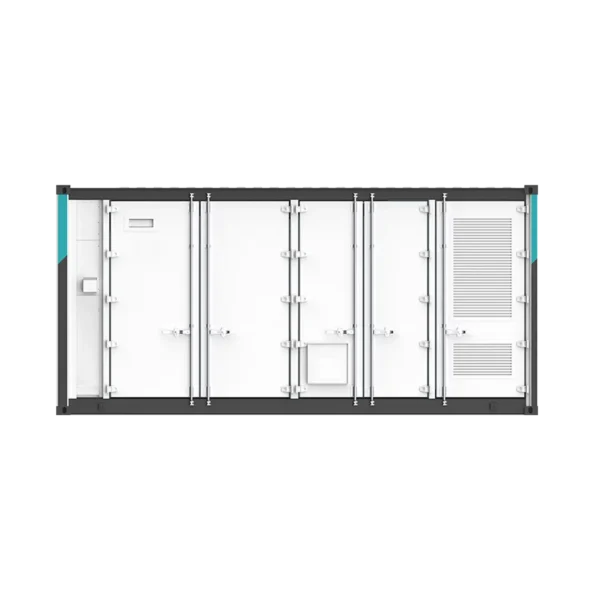

MP-CONTAINER L2200-OMNI-7649

High-Density Storage & Efficient Performance

Large-Scale Energy Capacity

• Nominal energy capacity up to 2.23 MWh
• Flexible configuration from 558 kWh to 2231 kWh
• High-efficiency system with up to 98 % efficiency
• Advanced LiFePO₄ battery technology for long lifecycle

Benefits:

• High-density energy storage for utility-scale deployment
• Improved ROI with long-cycle battery performance

Reliable Operation & Flexible Deployment

Designed for Industrial Applications

• Wide operating temperature range -25 °C to +55 °C
• Containerized design for fast installation
• Support grid services, demand response, and backup power
• High-altitude deployment support up to 4000 m

Advantages:

• Suitable for harsh outdoor environments
• Flexible deployment for various grid scenarios

Intelligent Cooling & Safety Protection

Liquid Cooling System

• Advanced liquid cooling thermal management
• Uniform temperature control for battery lifespan extension
• Integrated aerosol fire suppression system
• High-level safety architecture

Benefits:

• Improved thermal stability
• Enhanced operational safety and reliability

Intelligent Management & Communication

Smart Energy Control

• Multiple communication protocols: CAN / RS485 / Ethernet
• Intelligent energy management system
• Support ancillary services and energy arbitrage
• Remote monitoring and system diagnostics

Advantages:

• Intelligent operation and maintenance
• Flexible grid integration capabilities

Durable & Outdoor-Ready Design

Industrial-Grade Protection

• IP55 protection rating
• Anti-corrosion level C3M (C5M optional)
• Containerized structure for outdoor installation
• Long lifecycle >6000 cycles @ 98% DoD

Advantages:

• Long-term reliable operation
• Suitable for harsh industrial environments

Why Choose China Moneypro L2200-OMNI?

• Large Capacity: Up to 2.23 MWh
• Liquid Cooling: Advanced thermal management system
• Flexible Configuration: 558 kWh to 2231 kWh
• High Efficiency: Up to 98 % efficiency
• Industrial Grade: IP55 outdoor-ready design
• Long Lifecycle: Over 6000 cycles

Key Specifications

• System Capacity: Up to 2231 kWh
• Battery Type: LiFePO₄
• Cycle Life: >6000 cycles
• Operating Voltage: 716.8-921.6 V
• Cooling Method: Liquid Cooling
• Protection Level: IP55
• Operating Temperature: -25 °C to +55 °C
• Communication: CAN / RS485 / Ethernet
• Altitude: ≤4000 m
• Efficiency: ~98%

Typical Applications

• Utility-scale energy storage
• Renewable energy integration
• Grid frequency regulation
• Industrial energy storage
• Micro-grid solutions
• Peak shaving & load shifting

FAQ – Common Questions

Q1: What is the maximum system capacity?
China Moneypro L2200-OMNI supports up to 2.23 MWh capacity.

Q2: What cooling method does the system use?
The system adopts advanced liquid cooling technology for thermal stability.

Q3: Is the system suitable for outdoor installation?
Yes — with IP55 protection and containerized design.

Q4: What battery technology is used?
The system uses LiFePO₄ batteries with long lifecycle.

Q5: What applications is the system suitable for?
Utility-scale storage, microgrid, renewable integration, and industrial applications.
