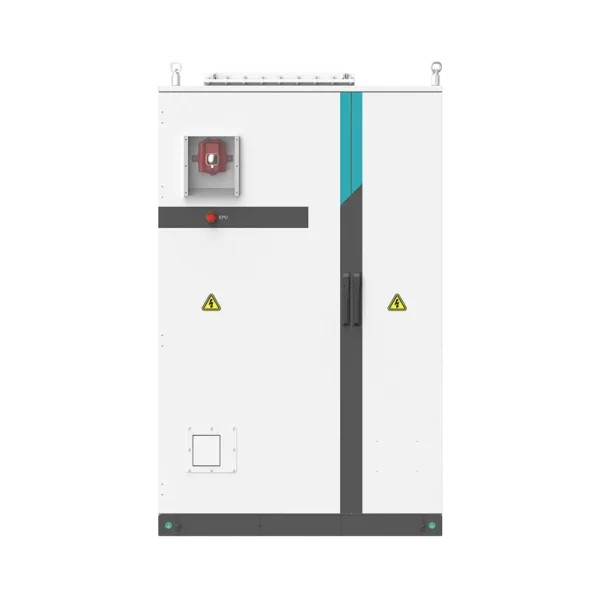

MP-OPTIM US A100-HY-9064

MP-OPTIM US A100-HY-9064

The China Moneypro A100HY Series is a high-performance commercial & industrial all-in-one hybrid energy storage system integrating battery, PCS, and energy management into a single cabinet. It is designed for peak shaving, load shifting, backup power, and maximizing renewable energy utilization in commercial and industrial applications.

Its modular architecture supports flexible capacity expansion and reliable operation in various energy scenarios.

Category:

Share your love

Efficient Energy Management & High PERFORMANCE

Maximize Energy Utilization

  • Integrated battery + PCS + EMS all-in-one design
  • High-efficiency LiFePO₄ battery technology for long cycle life
  • High system efficiency up to 95% round-trip efficiency
  • Supports flexible energy management for peak shaving and load shifting

Benefits:

  • Reduced electricity cost
  • Improved energy efficiency
  • Optimized renewable energy utilization

Reliable Backup & Continuous Power

Power Peace of Mind

  • Rated power options: 50 kW / 100 kW
  • Nominal battery capacity: 104 kWh
  • Expandable capacity range: 52 kWh – 520 kWh
  • Fast switching time <10ms for backup operation
  • Parallel expansion support for larger systems

Advantages:

  • Scalable energy storage solution
  • Reliable backup power for critical loads
  • Suitable for large commercial facilities

Intelligent Management & Connectivity

Smart Controls for Energy Systems

  • Integrated Energy Management System (EMS)
  • Supports Modbus TCP/IP & Modbus RTU communication
  • Smart peak shaving and load shifting control
  • Micro-grid ready operation capability

Benefits:

  • Intelligent energy scheduling
  • Real-time monitoring and control
  • Flexible system integration

Durable & Safe Design

Engineered for Long-Term Use

  • IP55 protection rating suitable for outdoor installation
  • Operating temperature range: -20°C to +50°C
  • Air cooling system for stable performance
  • LiFePO₄ battery chemistry for high safety

Advantages:

  • Reliable outdoor deployment
  • Long lifecycle performance
  • Enhanced safety architecture

Why Choose China Moneypro A100HY?

  • All-in-One Design: Battery + PCS + EMS integrated
  • Flexible Expansion: 52 kWh to 520 kWh scalable
  • High Efficiency: Up to 95% round-trip efficiency
  • Fast Backup Switching: <10ms response time
  • Industrial-Grade Protection: IP55 outdoor cabinet

Key Specifications

  • Rated Power: 50 kW / 100 kW
  • Nominal Capacity: 104 kWh
  • Expandable Capacity: 52 kWh – 520 kWh
  • Battery Type: LiFePO₄
  • Protection Rating: IP55
  • Communication: Modbus TCP/IP, Modbus RTU
  • Cycle Life: >7000 cycles
  • Operating Temperature: -20°C to +50°C
  • Response Time: <10 ms
  • Parallel Support: Multiple systems supported

Typical Applications

  • Commercial Buildings
  • Factories & Industrial Facilities
  • Peak Shaving & Load Shifting
  • Backup Power Systems
  • Micro-Grid Applications

These applications help reduce energy costs and improve power reliability.

FAQ – Common Questions

Q1: What battery technology is used?
The system uses LiFePO₄ battery technology for safety and long lifecycle.

Q2: What capacity options are available?
The system supports 52 kWh to 520 kWh expansion.

Q3: Can the system be installed outdoors?
Yes, it features IP55 protection rating for outdoor installation.

Q4: What are the power options?
Available power configurations include 50 kW and 100 kW.

Q5: What applications is this system suitable for?
Ideal for commercial, industrial, and micro-grid energy storage scenarios.

Specifications

Dimension (W*D*H mm, w/o inverter) 1500*1125*2195
Weight (tons) 1.9 (Inc. Battery)
Working Temperature Range (℃) -20-50*
Protection Class IP55
Altitude (m) ≤2000
Humidity 0~95%
Fire extinguishing Aerosol
Cooling System air cooling
Cooling system consumption (kW,Cooling/Heating) 2/1
Aux. Power Consumption (kW, continuous/peak, incl. HVAC) 1.5/3
Max.parallel No. 5
Anti-corrosion C3(C5 Optional)
Certification UN38.3/UN3481/IEC62619/IEC62040-1/CE/UKCA(EMC/RED)/VDE2510-50/UL1973/UL9540A/UL9540 G99/VDE-AR-N 4105/EN 50549-1/EN 50549-10/EIFS 2018.2/IEC 62116/IEC 61727/ IEC 60068/IEC 61683/EN 50530
Battery Type Li-ion (LFP)
Nominal Capacity (kWh) 104
Max. /Continuous Operation C-rate 1/0.5
Depth of Discharge 98% (single string)
Cycle Life ＞7000
DC Voltage Range (Vdc) 594~792 (single string)
Max. /Continuous Operation Current (A) 148/74
Round-trip Efficiency@ 0.5C-rate 95%
Rated AC Power (kW) 50/100
Rated AC Output Voltage (Vac) 400
Rated AC Output Frequency (Hz) 50/60
Max AC Current (A) 76 (Linear Load)
Overload Capacity 110%
AC PF 0.99 (0.8 leading ~ 0.8 lagging)
CEC Efficiency 97.4% (Max.97.8%)
Isolation Type Non-isolation
Response Time (On-Grid to Off-Grid) <10ms
Communication Type Modbus TCP/IP，Modbus RTU
Operation Logic Peak Shaving/Energy Shifting/Self-Consumption/Backup
