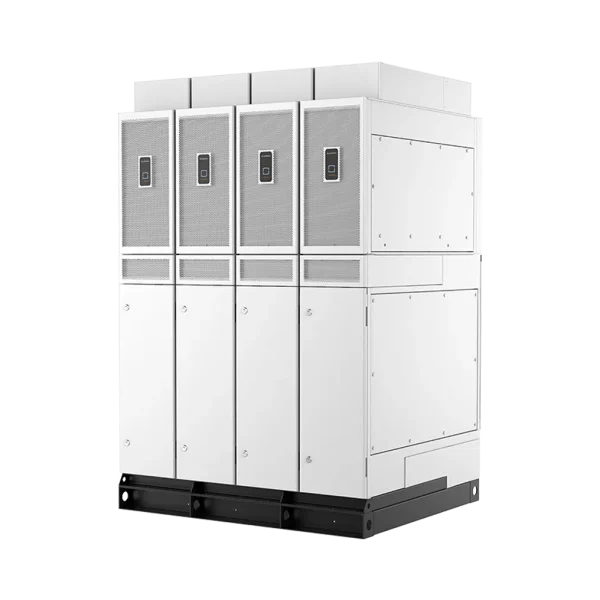

MP-SG3125UD-MV-5401

Maximizing Efficiency with Lower LCOE

Utility-scale PV projects often face high upfront costs and complex deployment. The China Moneypro SG3125UD-MV-20 integrates a medium-voltage (MV) inverter and modular 1500Vdc system for rapid deployment and flexible sub-array capacity, enabling up to 9375 kW per sub-array. This design reduces balance-of-system (BOS) costs, lowers LCOE, and accelerates project ROI.

Intelligent Operation & Maintenance

Ultra-Fast Maintenance and Fault Resolution

• Split modular design allows maintenance of faulty modules in under 1 hour.

• AI-powered fault detection and real-time monitoring ensure rapid identification and resolution.

• Self-cleaning air duct monitoring eliminates daily manual maintenance.

Benefits:

• Reduced downtime

• Lower O&M costs

• Enhanced energy yield

Advanced Safety Features

Proactive Module and System Protection

• DC parallel arc protection responds within 40 ms, preventing potential fires.

• 24-hour AC/DC insulation monitoring ensures continuous system protection.

Advantages:

• Safeguards personnel and assets

• Maintains operational reliability

• Enables confident unattended operations

Grid-Forming & Adaptive Support

Enhanced Grid Interaction

• Provides daily reactive voltage support through PV grid-forming.

• Actively adapts to strong and weak grids, detecting fluctuations automatically.

• Ultra-fast 20 ms reactive power dispatch improves grid stability and compliance.

Grid Benefits:

• Maintains voltage and frequency stability

• Minimizes penalties for grid non-compliance

• Supports rapid commercial operation

Technical Highlights

• Max PV Input Voltage: 1500 V

• Sub-Array Capacity: 9375 kW

• Rated Output Power: 3125 kVA

• Max Efficiency: 99%

Applications

Utility-Scale PV Plants

Ideal for large-scale 1500Vdc MV systems, combining integrated inverter design, modular deployment, and flexible capacity.

High-Reliability Operations

Split modular design with AI monitoring ensures fast maintenance and minimal downtime.

Advanced Grid Integration

Supports reactive power management, grid-forming capabilities, and adaptive operation in weak or strong grids.

FAQ – Key Questions

Q1: How does the integrated MV inverter reduce costs?
Combining MV inverter and modular sub-arrays reduces cabling, civil works, and BOS costs, lowering the overall LCOE.

Q2: How quickly can a faulty module be serviced?
Thanks to split modular design, maintenance can be completed in under 1 hour.

Q3: What safety protections are included?
DC parallel arc protection (40 ms) and 24-hour insulation monitoring ensure system and personnel safety.

Q4: Can it adapt to variable grid conditions?
Yes. The inverter actively responds to strong and weak grids, dispatching reactive power within 20 ms.

Q5: Is daily air duct cleaning required?
No. AI monitoring with self-cleaning keeps air ducts dust-free automatically.

Why Choose China Moneypro

The SG3125UD-MV-20 delivers a next-generation MV 1500Vdc PV inverter solution with high efficiency, rapid maintenance, robust safety, and advanced grid support, making it perfect for utility-scale solar projects seeking lower LCOE, higher uptime, and seamless grid integration.
