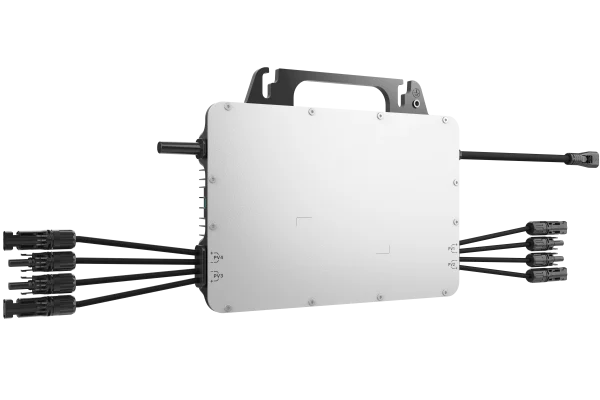

MP-560~720W S2500S-L Microinverter-9941

MP-560~720W S2500S-L Microinverter-9941

Microinverter

The China Moneypro S2500S-L microinverter packs a powerful punch in a compact design, perfect for your rooftop solar system. It reliably generates high yields even in scorching temperatures, thanks to its ability to handle 18A of current and operate stably up to 80°C. With integrated long-range Wi-Fi and one-click cloud setup, you can monitor your entire array from your phone in under a minute. Plus, its IEC 63027 certification gives you peace of mind knowing your home and family are protected. This microinverter makes managing your solar investment simple, safe, and incredibly efficient.

Category:

Share your love

Small Size, Big Impact

The China Moneypro S2500S-L microinverter is designed for high-efficiency, rooftop PV systems. Optimized for mainstream PV modules, it delivers stable performance even in high-temperature environments and enables seamless cloud-based management.

High Yield for Rooftop Systems

Perfect Fit for PV Modules

  • 18A large current perfectly matches mainstream PV modules.

  • Supports full-load operation at high temperatures: stable under 80℃, no derating under 45℃.

Benefits:

  • Maximizes energy harvest from each module

  • Reliable performance in hot climates

  • Enhances ROI for residential and commercial rooftops

Enhanced Communication & Connectivity

Advanced Wi-Fi Integration

  • Enhanced Wi-Fi technology ensures stable communication over long distances

  • Transmission distance is twice that of similar microinverters

Advantages:

  • Reliable data transmission

  • Reduced signal loss

  • Easy integration into large rooftop arrays

IEC-Certified Safety

Rooftop Protection

  • Certified to IEC 63027, ensuring continuous rooftop safety

  • Robust design minimizes electrical hazards

Benefits:

  • Protects both PV modules and building structures

  • Ensures compliance with international safety standards

  • Peace of mind for residential and commercial installations

Easy Cloud Integration

One-Click Configuration

  • Randomly configure one microinverter, and the rest automatically sync to iSolarCloud within 1 minute

  • Full monitoring and management from mobile or web app

Advantages:

  • Minimal setup time

  • Real-time system monitoring

  • Simplified O&M for rooftop PV systems

Why Choose China Moneypro S2500S-L?

  • Optimized for Mainstream Modules: 18A large current for better matching

  • High-Temperature Resilience: Stable operation up to 80℃

  • Advanced Connectivity: Enhanced Wi-Fi and cloud integration

  • Certified Safety: IEC 63027 compliant

  • Simple Maintenance: One-click configuration and full cloud monitoring

Key Specifications

  • Max PV Input Voltage: 60 V

  • Rated AC Output Power: 2500 W

  • Rated AC Voltage: 220/230/240 V

  • Maximum Efficiency: 96.5%

Typical Applications

  • Residential rooftop PV systems

  • Commercial rooftop installations

  • Systems requiring cloud-based monitoring and fast setup

  • High-temperature environments where reliability is critical

FAQ – Common Questions

Q1: Which PV modules are compatible?
Supports mainstream PV modules with 18A maximum current.

Q2: Can it handle high temperatures?
Yes, stable operation up to 80℃ with no derating below 45℃.

Q3: How fast is the cloud integration?
Randomly configure one microinverter, and the rest sync to iSolarCloud within 1 minute.

Q4: Is it safe for rooftops?
Absolutely. Certified to IEC 63027 for continuous rooftop safety.

Q5: Can I monitor it remotely?
Yes, the system is fully compatible with iSolarCloud for mobile and web monitoring.

Specifications

InputDC

Recommended PV module power range

 560 W – 720 W
Max. PV input voltage 60 V
Min. PV input voltage / Startup input voltage 16 V / 22 V
MPPT voltage range 16 V – 60 V
No. of independent MPP trackers 4
Max. PV input current 18 A * 4
Max. DC short-circuit current 23 A * 4
Output ( AC )
Grid type Single phase
Rated AC output power 2500 W
Max. AC output apparent power 2500 VA
Max. AC output current 11.4 A
Rated AC output current ( at 230 V ) 11.4 A @ 220 Vac

10.9 A @ 230 Vac10.4 A @ 240 Vac
Rated AC voltage 220 V / 230 V / 240 V
AC voltage range * 176 V – 276 V
Rated grid frequency 50 Hz / 60 Hz
Grid frequency range 50 Hz / 45 Hz – 55 Hz

60 Hz / 55 Hz – 65 Hz
Harmonic ( THD ) < 5 % ( at rated power )
Power factor at rated power > 0.99
Maximum units per 10 AWG branch ** 3
Effciency
Max. effciency 96.5 %
Protection & Function
Grid monitoring Yes
Leakage current protection Yes
PV module monitoring Yes
Rapid shutdown Yes
Surge protection level Type II
General data
Dimensions ( W * H * D ) 346 mm * 227 mm * 46 mm
Weight 5.5 kg
Mounting method Bracket Mounted
Degree of protection IP67
Night power consumption ＜ 50 mW
Operating ambient temperature range -40 °C – 80 °C
Allowable relative humidity range 100 %
Cooling method Natural cooling
Max. operating altitude 2000 m
Display LED
Communication WLAN
DC connection type MC4 compatible
AC connection type Plug and play connector
Grid compliance IEC 62109-1/-2, IEC 62116, IEC 61683, IEC 50530, IEC 61000-3-2,

IEC 61000-3-12, IEC 60529
