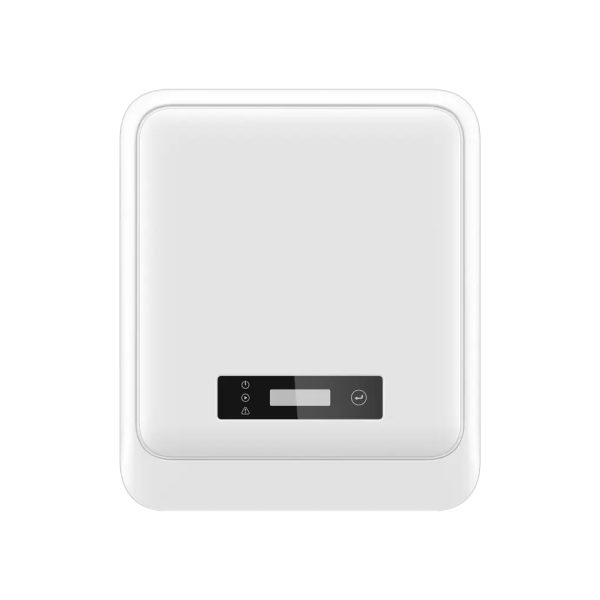

MP-DNS G3 3-6kW Single Phase Residential Inverter-9316

Smart Residential PV Inverter with High Yield

The China Moneypro DNS G3 Series is a compact and efficient single‑phase solar inverter designed for residential grid‑tied solar systems. It delivers strong daily energy yield, intelligent load monitoring, and enhanced safety protections — all in an ultra‑quiet, fanless design. With a wide MPPT range, high current capability, and support for high‑power PV modules, this series is ideal for homeowners seeking optimized energy generation and long‑lasting reliability.

High Yield & Optimized Energy Capture

Maximize Photovoltaic Output

• Supports 150 % DC input oversizing, enabling larger PV arrays to feed into the inverter for better use of available roof space.

• Allows 110 % AC output overloading, increasing flexibility during peak generation.

• Two MPPT trackers optimize power harvesting from different array orientations or partially shaded installations.

• Max. 16 A input current per string supports today’s high‑power PV modules.

Benefits:

• Greater energy collection across varying solar conditions.

• Design flexibility for complex rooftop layouts.

Intelligent Monitoring & Operation

Smart Energy Management

• Built‑in 24/7 load consumption monitoring helps understand real‑time energy use.

• Supports dry contact connections and multiple communication protocols (e.g., Modbus RTU, SunSpec) for advanced system integration.

• Optional connectivity with external devices (e.g., HomeKit 1000) enables export control and smarter load scheduling.

Advantages:

• Real‑time performance insights and improved energy control.

• Easy integration with home energy monitoring platforms.

Robust Safety & Reliable Performance

Designed for Long‑Term Outdoor Use

• IP66 rated protection against dust and water ingress ensures long‑lasting performance in harsh environments.

• Optional AFCI (arc fault circuit interrupter) enhances electrical fire safety.

• Optional AC & DC Type II SPD protection and failure alarms guard against surges and lightning events.

• Fanless design enables near‑silent operation (< 25 dB) ideal for residential areas.

Benefits:

• Enhanced safety for both the system and property.

• Reliable and quiet performance for everyday operation.

Why Choose China Moneypro DNS G3 Series?

• Strong Yield: 150 % DC oversizing and dual MPPTs for higher generation.

• Quiet & Compact: Fanless, lightweight design with residential aesthetics.

• Smart Control: Real‑time consumption monitoring and multiple communication options.

• Robust Safety: Optional AFCI and SPD protection with IP66 durability.

• Flexible Integration: Compatible with smart home and export limitation systems.

Key Specifications

(Based on officially published series information — values may vary by specific model)

• Power Range: 3 kW – 6 kW single‑phase with 2 MPPTs.

• 150 % DC Input Oversizing: Supported.

• 110 % AC Output Overloading: Supported.

• Max. Efficiency: 97.9 %.

• Max. Input Current per MPPT: 16 A.

• MPPT Trackers / Strings: 2 / 1 per MPPT.

• Max. DC Input Voltage: ~600 V.

• Nominal AC Voltage: 220/230/240 V.

• Ingress Protection: IP66.

Typical Applications

• Residential Rooftop Systems: Efficient conversion for homes and small buildings.

• Smart Solar Integration: Works with load management and export‑limitation systems.

• Quiet Environments: Ideal for urban and suburban installations with low noise requirements.

• Residential Upgrades: Supports high‑power modules for expanded PV arrays.

FAQ – Common Questions

Q1: What power outputs does the DNS G3 Series cover?
It covers 3 kW to 6 kW models with 2 MPPT trackers — suitable for most residential solar systems.

Q2: Can this inverter handle more PV panels than its rated power?
Yes — it supports up to 150 % DC input oversizing for larger module arrays.

Q3: Is this inverter suitable for residential outdoor installation?
Absolutely — with IP66 protection and fanless cooling, it’s built for quiet, outdoor operation.

Q4: What safety protections are included?
Optional AFCI and AC/DC Type II SPD protect against arc faults and surges.

Q5: Can I monitor system performance remotely?
Yes — it supports load consumption monitoring and multiple communication protocols for remote system management.
