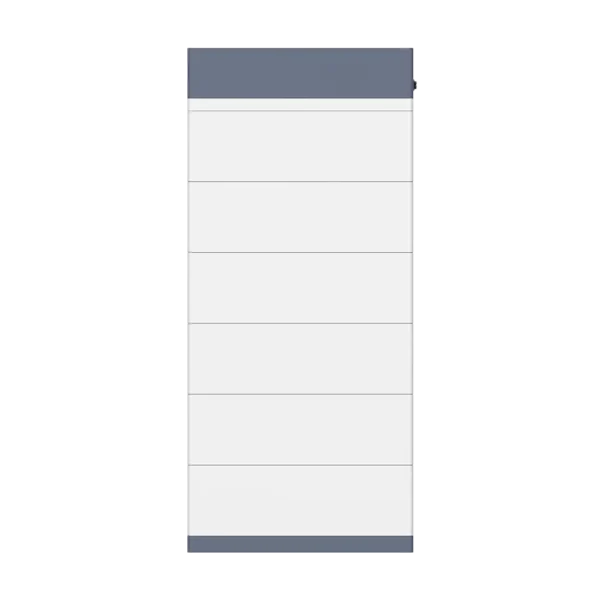

MP-Force H3-8915

High Efficiency & Flexible Expansion

Scalable Modular Design

• 5.12 kWh per battery module for flexible configuration
• Supports 2-7 modules per tower
• Capacity range from 10.24 kWh to 35.84 kWh
• Up to 6 battery towers in parallel for larger energy storage systems

Benefits:

• Flexible system sizing for different home requirements
• Easy expansion for future energy demand

Reliable Performance & Long Lifespan

Built for Long-Term Operation

• LiFePO₄ battery technology for enhanced safety and durability
• 8000+ cycle life for long-term performance
• 15+ years design life
• 95% depth of discharge for high usable energy

Advantages:

• Reduced total cost of ownership
• Reliable long-term energy storage

Intelligent Design & Easy Installation

Plug-and-Play Installation

• Stackable modular structure simplifies installation
• Internal connectors reduce wiring complexity
• Compact footprint suitable for residential installations
• Compatible with major hybrid inverter brands

Benefits:

• Fast installation
• Reduced maintenance complexity

Durable & Safe Design

Engineered for Safety

• IP55 protection rating for indoor and sheltered outdoor installation
• Built-in Battery Management System (BMS) protection
• High-voltage architecture improves system efficiency
• Multiple safety certifications including UL9540A / IEC / UN38.3

Advantages:

• Safe residential operation
• Reliable system protection

Why Choose China Moneypro Force-H3?

• High Voltage System: Improved system efficiency
• Flexible Expansion: 10.24 kWh – 35.84 kWh scalable
• Long Lifespan: 8000+ cycles and 15-year design life
• Easy Installation: Plug-and-play stackable design
• Reliable Safety: IP55 protection and advanced BMS

Key Specifications

• Battery Technology: LiFePO₄
• Module Capacity: 5.12 kWh
• System Capacity: 10.24 kWh – 35.84 kWh
• Nominal Voltage: 204.8 V – 716.8 V
• Depth of Discharge: 95%
• Cycle Life: 8000+ cycles
• Parallel Support: Up to 6 systems
• Communication: CAN / Modbus RTU
• Protection Rating: IP55
• Operating Temperature: -10°C to 55°C
• Design Life: 15+ years

Typical Applications

• Residential Solar Storage
• Home Backup Power
• Self-Consumption Optimization
• Small Commercial Energy Storage
• Micro-Grid Applications

FAQ – Common Questions

Q1: What capacity options are available?
The system supports 10.24 kWh to 35.84 kWh depending on module configuration.

Q2: How scalable is the system?
Up to 6 battery towers in parallel for large energy storage systems.

Q3: What battery technology is used?
The system uses LiFePO₄ battery technology for safety and long lifespan.

Q4: Is the system suitable for outdoor installation?
Yes, the IP55 protection rating allows sheltered outdoor installation.

Q5: What is the cycle life?
The system supports 8000+ cycles with long-term reliability.
