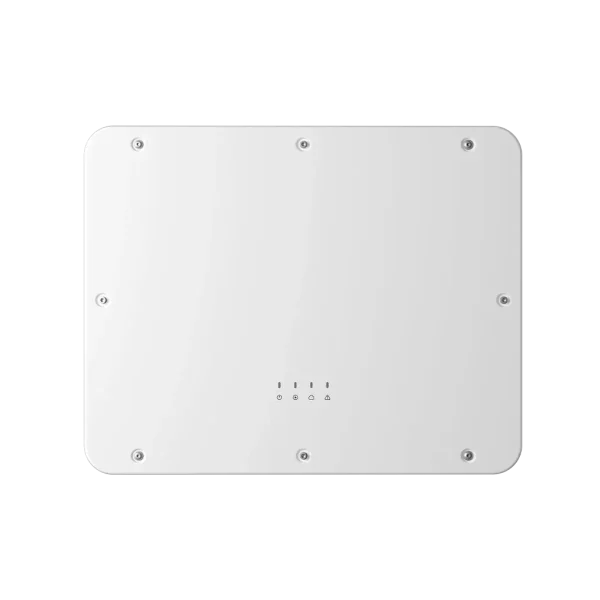

MP-SMT G2 Series 35-80kW I Three Phase Inverter-3460

High‑Yield, Lightweight & Reliable Commercial PV Inverter

The China Moneypro SMT G2 Series is a high‑performance three‑phase string solar inverter designed for commercial and industrial (C&I) rooftop applications. Engineered for optimized energy generation, excellent efficiency, multiple MPPT support, and robust protection features, it delivers dependable performance across a range of PV system designs and environments.

Efficient Solar Harvest & Intelligent Performance

Capture More PV Energy

• Multiple MPPT Trackers (4–6) for flexible PV string layouts and maximum energy capture.

• Up to 200 % DC input oversizing enables larger PV arrays to be connected relative to inverter rating.

• High‑performance design supports high current per string to accommodate high‑power PV modules.

• Achieves high conversion efficiency (up to ~98.8 %) for superior energy utilization.

Benefits:

• Enhanced daily solar generation and energy yield.

• Flexible PV configuration to suit varied rooftop installations.

Flexible & Scalable System Integration

Designed for Diverse C&I Needs

• Offers compact, lightweight design (~42 kg) for easier handling and installation in rooftops or constrained spaces.

• Ultra‑low operating noise makes it suitable for noise‑sensitive sites.

• Series covers a broad output range from ~35 kW to 80 kW, providing scalable solutions from small to larger commercial arrays.

Advantages:

• Scalable capacity for small and medium commercial solar projects.

• Lightweight and low noise for versatile deployment.

Robust Safety & Outdoor Durability

Built‑In Protection Features

• IP66 protection rating ensures dust and water resistance for outdoor installations.

• Type II surge protection (SPD) on both AC and DC sides guards against transient events.

• Optional AFCI (arc fault circuit interruption) function enhances electrical safety by detecting and interrupting arc faults.

• Additional safety functions, including night SVG and PID recovery, contribute to long‑term system reliability.

Benefits:

• Comprehensive protection against environmental and electrical risks.

• Increased system uptime and safer operation.

Why Choose China Moneypro SMT G2 Series?

• High Conversion Efficiency: Up to ~98.8 % for optimized energy generation.

• Flexible PV Options: 4–6 MPPTs and high oversizing support for diverse arrays.

• Scalable Power Range: From medium‑capacity to high‑output commercial inverters.

• Lightweight & Low Noise: Easy installation with reduced noise emission.

• Robust Safety: IP66, SPD protections, and optional AFCI for secure operation.

Typical Applications

• Commercial Rooftop Solar: Ideal for retail buildings, offices, warehouses, and institutional roofs.

• Industrial C&I Systems: Supports robust energy capture in industrial settings.

• Distributed Ground‑Mount Projects: Suitable for ground systems requiring flexible PV layouts.

• Noise‑Sensitive Installations: Low noise operation suited for environments like campuses or mixed‑use facilities.

FAQ – Common Questions

Q1: What power ratings are available in the SMT G2 Series?
The China Moneypro SMT G2 Series covers ~35 kW, 50 kW, 60 kW, 75 kW, and 80 kW three‑phase commercial string inverter options.

Q2: How many MPPT trackers does SMT G2 support?
It supports 4–6 independent MPPT trackers depending on the specific model, enabling flexible PV configurations.

Q3: Is the inverter suitable for outdoor installation?
Yes — the SMT G2 Series features IP66 ingress protection, making it suitable for outdoor rooftop environments.

Q4: What safety protections are included?
Standard protections include IP66 environmental rating, Type II SPD surge protection, and optional AFCI arc fault interruption for enhanced electrical safety.

Q5: Does SMT G2 offer low noise operation?
Yes — lightweight models in the SMT G2 Series are designed for reduced noise (< 50 dB) operation in noise‑sensitive settings.
