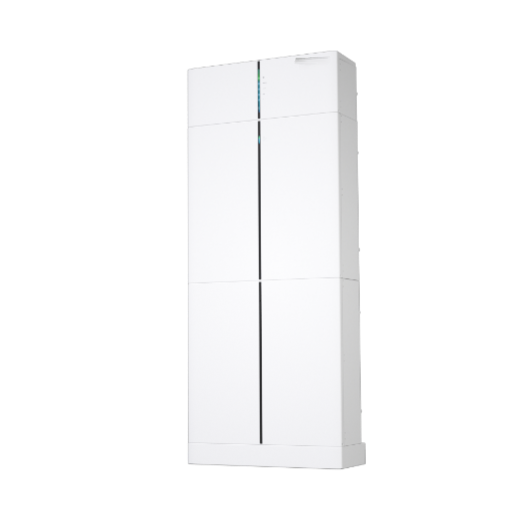

MP-T-BAT H 3.0 V2 Residential 3.1-12.3kWh Energy Storage Battery-9180

MP-T-BAT H 3.0 V2 Residential 3.1-12.3kWh Energy Storage Battery-9180

Meet the MP-T-BAT H 3.0 V2—a compact, stackable battery that grows with your energy needs from 3.1 to 12.3 kWh. Built with safe, long-lasting LiFePO₄ cells, it delivers reliable backup and solar storage for your home. Its IP65 rating means it’s tough enough for indoor or outdoor setups, while smart remote monitoring keeps maintenance simple. Best of all, you can easily add more modules later as your power demands increase. Ready to take control of your energy?

Category:

Share your love

Compact & Flexible High‑Voltage Storage for Solar

The China Moneypro TSYS‑HV‑3.0 is a scalable high‑voltage modular battery system engineered to provide efficient solar energy storage, smart operation, and long‑lasting reliability for residential and light commercial PV applications. With stackable modules and a rugged design suitable for indoor or outdoor environments, it supports flexible capacities to meet a range of energy requirements.

Adjustable Capacity & Intelligent Design

Built to Support Everyday Energy Needs

  • Modular capacity range from ~3.1 kWh up to ~12.3 kWh, allowing homeowners to scale storage as needs grow.

  • LiFePO₄ (Lithium Iron Phosphate) cells provide safe, stable, and durable performance.

  • Efficient energy transfer and high usable capacity maximize system performance.

Benefits:

  • Flexibly adapts to different daily consumption patterns.

  • Available as floor‑mounted modular stacks for future expansion.

Reliable & Durable for Long Life

Designed for Reliable Daily Operation

  • Cycle life exceeding 6000 cycles supports sustained use and long service life.

  • High‑performance processors and smart heating technology help maintain battery operation even at lower temperatures.

  • Inherent safety protections, including prevention of over‑discharge.

Advantages:

  • Long lifecycle reduces total lifetime costs.

  • Stable performance in varied climates.

Smart Monitoring & Integration

Intelligent Management Capabilities

  • Supports remote fault diagnosis, firmware upgrades, and maintenance for reduced onsite effort.

  • Integrates with compatible high‑voltage hybrid inverter systems for optimized energy storage and dispatch.

Benefits:

  • Simplifies system maintenance and monitoring.

  • Enhances visibility into battery performance and system health.

Built‑In Protection & Flexible Installation

Ready for Real‑World Conditions

  • IP65‑rated enclosure provides reliable resistance to dust and water — suitable for indoor or sheltered outdoor installations.

  • Floor‑mount support with stackable modules allows flexible deployment and expansion.

Benefits:

  • Protects against environmental stressors.

  • Installation options adapt to site constraints.

Why Choose China Moneypro TSYS‑HV‑3.0?

  • Flexible Capacity: Scalable from ~3.1 kWh to ~12.3 kWh to match energy needs.

  • Durable & Safe: LiFePO₄ chemistry with long cycle life ensures lasting performance.

  • Smart O&M: Remote diagnostics and system upgrades simplify maintenance.

  • Reliable Protection: IP65 rating for real‑world applications.

  • Easy Expansion: Modular stack design enables future capacity growth.

Key Specifications

  • Battery Type: LiFePO₄ (Lithium Iron Phosphate)

  • Nominal Voltage: ~102.4 V for base unit

  • Total Energy Range: ~3.1 kWh – ~12.3 kWh (modular stack)

  • Usable Energy (single module): ~2.8 kWh (~90% DOD)

  • Max. Charge/Discharge Current: ~30 A

  • Cycle Life: > 6000 cycles

  • Ingress Protection: IP65

  • Installation: Floor mounting with modular stacking support

Typical Applications

  • Residential Solar + Storage: Store excess solar energy for nighttime or peak usage.

  • Backup Power Support: Provides resilience during power interruptions.

  • Scalable Hybrid Systems: Build larger capacity through modular expansion.

FAQ – Common Questions

Q1: What capacity range does the TSYS‑HV‑3.0 support?
It supports a modular range from approximately 3.1 kWh up to 12.3 kWh depending on the number of stacked modules.

Q2: What battery chemistry does it use?
It uses LiFePO₄ (Lithium Iron Phosphate) cells for safety, stability, and long life.

Q3: Is the system suitable for outdoor installation?
Yes — with IP65 protection, it resists dust and water, making it suitable for indoor or sheltered outdoor environments.

Q4: How long is its cycle life?
It offers a cycle life exceeding 6000 cycles, supporting long‑term daily use.

Q5: Can I monitor and maintain the system remotely?
Yes — the system supports remote fault diagnosis, firmware upgrades, and monitoring, helping simplify O&M.

Specifications

Technical Data
MP-T-BAT H 3.0 V2
MP-T-BAT H 6.0 V2
MP-T-BAT H 9.0 V2
MP-T-BAT H 12.0 V2
Electrical Parameters
Rated Voltage (V)
102.4
204.8
307.2
409.6
Operation Voltage Range (V)
90 ~ 116
180 ~ 232
270 ~ 348
360 ~ 464
Total Energy (kWh)
3.1
6.1
9.2
12.3
Usable Energy (kWh)
2.8
5.5
8.3
11.0
Rated Capacity (Ah)
30
30
30
30
Rated Charge / Discharge Power (kW)
2.5
5.1
7.6
10.2
Max. Charge / Discharge Power (kW)
3.1
6.1
9.2
12.3
Recommend Charge / Discharge Current (A)
25
25
25
25
Max. Charge / Discharge Current (A)
30
30
30
30
Battery Efficiency
95%
95%
95%
95%
Cycle Life (90% DOD)
> 5000 cycles
> 5000 cycles
> 5000 cycles
> 5000 cycles
Warranty
10 Years
10 Years
10 Years
10 Years
Environmental Parameters
Charge Temperature (°C)
-30 ~ +50 (with heating) / 0 ~ +50 (without heating)
-30 ~ +50 (with heating) / 0 ~ +50 (without heating)
-30 ~ +50 (with heating) / 0 ~ +50 (without heating)
-30 ~ +50 (with heating) / 0 ~ +50 (without heating)
Discharge Temperature (°C)
-30 ~ +50 (with heating) / -20 ~ +50 (without heating)
-30 ~ +50 (with heating) / -20 ~ +50 (without heating)
-30 ~ +50 (with heating) / -20 ~ +50 (without heating)
-30 ~ +50 (with heating) / -20 ~ +50 (without heating)
Storage Temperature
-20 ~ 30°C (12 months) / 30 ~ 50°C (6 months)
-20 ~ 30°C (12 months) / 30 ~ 50°C (6 months)
-20 ~ 30°C (12 months) / 30 ~ 50°C (6 months)
-20 ~ 30°C (12 months) / 30 ~ 50°C (6 months)
Relative Humidity
4 ~ 100% RH (condensing)
4 ~ 100% RH (condensing)
4 ~ 100% RH (condensing)
4 ~ 100% RH (condensing)
Max. Operation Altitude (m)
3000
3000
3000
3000
Ingress Protection
IP65
IP65
IP65
IP65
Communication & Interface
Battery to Inverter
RS485 / CAN2.0
RS485 / CAN2.0
RS485 / CAN2.0
RS485 / CAN2.0
Battery to Battery / BMS
CAN2.0
CAN2.0
CAN2.0
CAN2.0
Master Control Capacity Indicator
4 LED (25%, 50%, 75%, 100%)
4 LED (25%, 50%, 75%, 100%)
4 LED (25%, 50%, 75%, 100%)
4 LED (25%, 50%, 75%, 100%)
Master Control LED Indicator (Working Mode)
1 LED
1 LED
1 LED
1 LED
System Switch (On/Off)
Button × 1 + Breaker × 1
Button × 1 + Breaker × 1
Button × 1 + Breaker × 1
Button × 1 + Breaker × 1
Certifications & Safety
Certifications
CE, IEC62619, IEC62040, UKCA, VDE2510, RoHS
CE, IEC62619, IEC62040, UKCA, VDE2510, RoHS
CE, IEC62619, IEC62040, UKCA, VDE2510, RoHS
CE, IEC62619, IEC62040, UKCA, VDE2510, RoHS
UN Number
UN3480
UN3480
UN3480
UN3480
Hazardous Materials Classification
Class 9
Class 9
Class 9
Class 9
UN Transportation Testing Requirements
UN 38.3
UN 38.3
UN 38.3
UN 38.3
Mechanical Parameters
Dimensions (W × H × D mm)
MC0600: 482.5 × 173.5 × 153 / HV10230: 482.5 × 471.5 × 153
MC0600: 482.5 × 173.5 × 153 / HV10230: 482.5 × 471.5 × 153
MC0600: 482.5 × 173.5 × 153 / HV10230: 482.5 × 471.5 × 153
MC0600: 482.5 × 173.5 × 153 / HV10230: 482.5 × 471.5 × 153
Net Weight (kg)
MC0600: 7.5 + HV10230: 34.5
MC0600: 7.5 + 2×HV10230: 69
MC0600: 7.5 + 3×HV10230: 103.5
MC0600: 7.5 + 4×HV10230: 138
