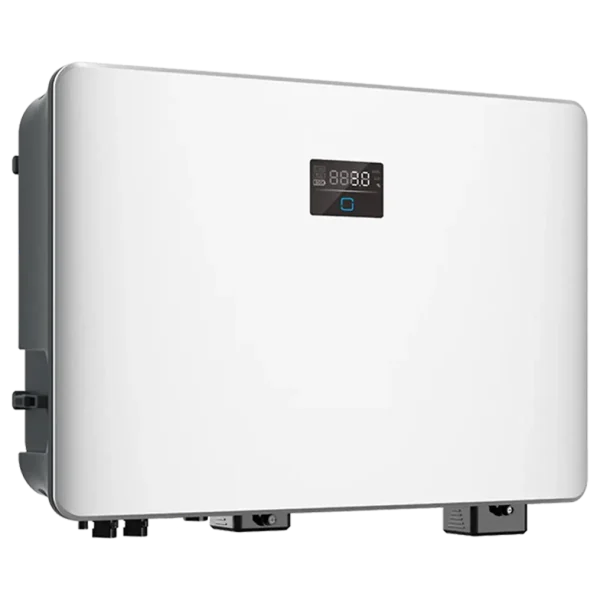

MP-3~6kW SH3.0/3.6/4.0/5.0/6.0RS Residential Hybrid Single Phase Inverter-7905

MP-3~6kW SH3.0/3.6/4.0/5.0/6.0RS Residential Hybrid Single Phase Inverter-7905

1-Phase Hybrid Inverter

The SHRS series hybrid inverter is designed for residential rooftops, providing reliable solar conversion, flexible battery integration, and seamless on/off-grid switching. Whether installing a new system or retrofitting an existing one, this inverter ensures maximum solar utilization, easy installation, and intelligent monitoring, so your home stays powered efficiently and safely.

Category:

Share your love

Clean Energy, Prepared for Your Home

The SHRS series hybrid inverter is designed for residential rooftops, providing reliable solar conversion, flexible battery integration, and seamless on/off-grid switching. Whether installing a new system or retrofitting an existing one, this inverter ensures maximum solar utilization, easy installation, and intelligent monitoring, so your home stays powered efficiently and safely.

Retrofit Ready – Add Storage Freely

Flexible & Scalable Energy Solution

  • Supports both new installations and retrofits with existing solar systems.

  • Provides modular expansion for future battery storage integration.

  • Enables customized energy management tailored to your household needs.

Benefits:

  • Easy adaptation to existing solar rooftops.

  • Scalable design for future-proof energy solutions.

  • Ensures energy independence while minimizing grid reliance.

More Efficient Solar Conversion – Maximize Power

High Output, Optimal Performance

  • Supports 16A string input, high DC/AC ratio, and multiple modules.

  • 2 MPPTs with 2 strings accommodate diverse rooftop orientations.

  • Optimized for larger, higher-output PV modules, enhancing energy harvest.

Advantages:

  • Increases solar generation efficiency across varying rooftops.

  • Maximizes return on energy usage with optimized module support.

  • Ensures stable power output under variable sunlight conditions.

Streamlined Installation – Effortless Setup

Quick, Hassle-Free Deployment

  • Lightweight and compact, less than 20kg, can be installed by one person.

  • Patented plug-and-play communication terminals, tool-free installation.

  • Fast commissioning and automatic integration with iSolarCloud.

Benefits:

  • Minimizes installation time and labor.

  • Reduces complexity, ensuring a smooth, reliable setup.

  • Perfect for DIY or professional installation scenarios.

Advanced Personalization – Tailored Energy for Your Home

Flexible Energy Modes

  • Seamlessly switch between powering your home, charging batteries, and feeding excess energy to the grid.

  • Intelligent control prioritizes self-consumption and efficiency.

  • Compatible with iSolarCloud for remote monitoring and system optimization.

Advantages:

  • Optimizes energy usage according to household needs.

  • Maintains power supply continuity during grid disruptions.

  • Enables smart, adaptive, and automated energy management.

Easy O&M – Full Control via iSolarCloud

  • Access real-time system data, module-level monitoring, and diagnostics.

  • Receive alerts, updates, and operational guidance remotely.

  • Simplifies maintenance and increases system uptime.

Key Specifications

  • Max. PV Input Voltage: 600 V

  • Rated AC Output Power: 3~6 kW

  • Rated AC Voltage: 220 V

  • Max. Efficiency: 97.7%

Typical Applications

  • Residential Rooftops: Ideal for new and retrofitted solar systems.

  • Battery-Ready Homes: Seamless integration with hybrid battery storage.

  • Flexible PV Orientations: 2 MPPTs and 2 strings handle multi-directional rooftops.

  • Reliable Energy Backup: Maintains power during outages with stable on/off-grid switching.

FAQ – Common Questions

Q1: Can I retrofit this inverter to my existing solar system?
Yes, the SHRS series is retrofit-ready and supports easy integration with current PV modules.

Q2: How many strings can it handle?
It supports 2 MPPTs and 2 strings, fitting various rooftop orientations and sizes.

Q3: Is it safe for outdoor installation?
Yes, built to IP65/C5 standards, resistant to dust, water, and corrosion.

Q4: How can I monitor system performance?
Through iSolarCloud, providing real-time monitoring and remote diagnostics on your phone.

Q5: Does it maintain efficiency in high temperatures?
Yes, optimized for full-load operation in hot environments while keeping maximum efficiency.

Specifications

Type designation MP-SH3.0RSSH3.6RS MP-SH4.0RS MP-SH5.0RS MP-SH6.0RS
Input (DC)
Recommended max. PV input power * 4500 Wp5400 Wp6000 Wp7500 Wp9000 Wp
Max. PV input voltage ** 600 V
Min. PV input voltage / Startup input voltage 40 V / 50 V
Rated PV input voltage 360 V
MPPT operating voltage range *** 40 V – 560 V
No. of independent MPP trackers 2
No. of PV strings per MPPT 1 / 1
Max. PV input current 32 A ( 16 A / 16 A )
Max. DC short-circuit current 40 A ( 20 A / 20 A )
Max. current for input connector 20 A
Battery data
Battery type Li-ion battery
Battery voltage range 80 V – 460 V
Max. charge **** / discharge current **** 30 A / 30 A
Max. charge / discharge power 6600 W
Input / output (AC)
Max. AC power from grid 10000 VA10700 VA11000 VA12000 VA13000 VA
Rated AC output power 3000 W3680 W4000 W5000 W6000 W
Max. AC output apparent power 3000 VA3680 VA4000 VA5000 VA6000 VA
Max. AC output current 13.7 A16 A18.2 A22.8 A27.3A
Rated AC voltage 220 V / 230 V / 240 V
AC voltage range 154 V – 276 V
Rated grid frequency 50 Hz / 60 Hz
Grid frequency range 45 Hz – 55 Hz / 55 Hz – 65 Hz
Harmonic (THD) < 3 %  ( of rated power )
Power factor at rated power / Adjustable power factor >0.99 at default value at rated power
Feed-in phases / connection phases 1 / 1
Backup data （on grid mode）
Max. output power for backup load ***** 6000 W
Max. output current for backup load ****** 27.3 A
Backup data （off-grid mode）
Rated voltage 220 V / 230 V / 240 V ( ± 2 % )
Rated frequency 50 Hz / 60 Hz ( ± 0.2 % )
THDV(@Linear load) < 2 %
Backup switch time < 10 ms
Rated output power 3000W / 3000VA3680W / 3680VA4000 W / 4000 VA5000W / 5000VA6000W / 6000VA
Peak output power 8400 VA, 10s
Effciency
Max. effciency / European effciency 97.4 % / 97.0 %97.5 % / 97.1 %97.6 % / 97.2 %97.7% / 97.3%97.7 % / 97.3 %
Protection & Function
Grid monitoring Yes
DC reverse polarity protection Yes
AC short-circuit protection Yes
Leakage current protection Yes
DC switch(solar) Yes
Surge protection DC Type II /AC Type II
PID Zero Yes
Parallel operation on grid port / Max. No of inverters Master-slave mode / 3
Optimizer compatbility ******* Optional
General data
Topology (Solar / Battery) Transformerless / Transformerless
Degree of protection IP65
Dimensions (W * H * D) 490 mm * 340 mm * 170 mm
Weight 18.5 kg
Mounting method Wall-mounting bracket
Operating ambient temperature range -25 ℃ – 60 ℃
Allowable relative humidity range 0 % – 100 %
Cooling method Natural convection
Max. operating altitude 4000 m
Noise (typical) < 45 dB ( A )
Display LED digital display & LED indicator
Communication RS485 / Ethernet / WLAN / CAN
DI / DO DI * 4 / DO * 1 / DRM
DC connection type MC4 (PV, Max.6 mm²) / Evo2 Compatible (Battery, Max.6 mm²)
AC connection type Plug and Play (Grid Max.16mm², Backup Max.6mm²)
Grid compliance IEC/EN 62109-1, IEC/EN 62109-2, IEC 62116, IEC 61727, IEC/EN 61000-3-11, IEC/EN 61000-3-12, EN 62477-1, AS/NZS 4777.2:2020, EN 50549-1, CEI 0-21, G 98 / G 99, UNE 217002:2020, NTS V2 TypeA,

C10/26
